Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4927

Engine — original illustration 1, reference 4927Original colors & callouts · Select to enlarge

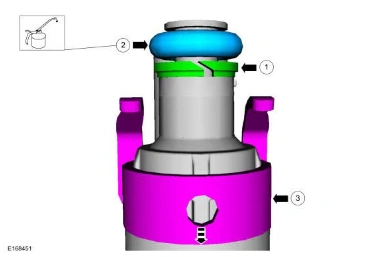

NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.

NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

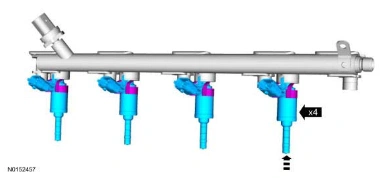

98. Install the fuel injectors in the fuel rail.

Engine — original illustration 2, reference 4927Original colors & callouts · Select to enlarge

NOTE: Make sure that new fuel rail bolts are installed.

NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

99. Install the fuel rail by push down on the fuel rail above the injectors.

Install the bolts and tighten in sequence shown in illustration in 2 stages.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 26°
