Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4928

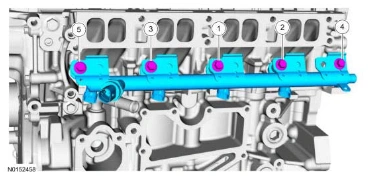

Engine — original illustration 1, reference 4928Original colors & callouts · Select to enlarge

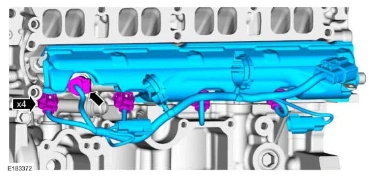

100. Connect the fuel injectors and FRP sensor electrical connectors.

Install the fuel rail shield.

Engine — original illustration 2, reference 4928Original colors & callouts · Select to enlarge

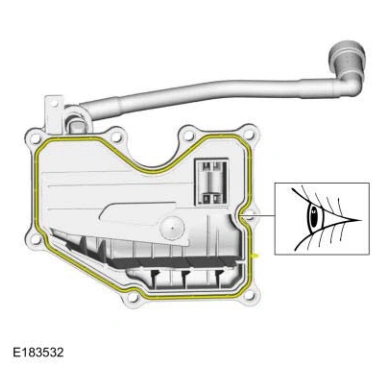

101. Inspect and replace the crankcase vent separator gasket, if damaged.

Engine — original illustration 3, reference 4928Original colors & callouts · Select to enlarge

102. Install the crankcase vent separator and the bolts.

Torque

: 89 lb.in (10 Nm)
