Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4929

Engine — original illustration 1, reference 4929Original colors & callouts · Select to enlarge

103.

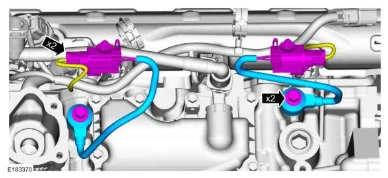

NOTE: The forward KS must be installed in the 6 o'clock position and the rearward KS must be installed in the 3 o'clock position as shown in illustration. Failure to follow these instructions may result in damage to the engine.

Install the KS in their original position and install the bolts.

Torque

: 177 lb.in (20 Nm)

Connect the KS electrical connectors.

Engine — original illustration 2, reference 4929Original colors & callouts · Select to enlarge

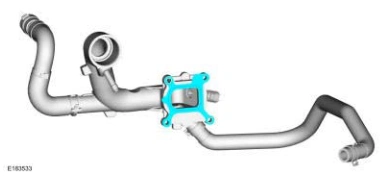

104. Install a new coolant outlet gasket.

Engine — original illustration 3, reference 4929Original colors & callouts · Select to enlarge

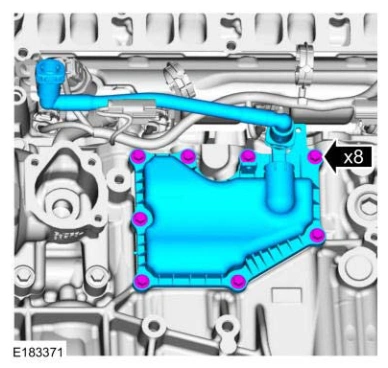

105.

Ford_Mustang_all_2015-2017.pdf · source reference 4929

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
