Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4930

Install the coolant outlet and the bolts.

Torque

: 89 lb.in (10 Nm)

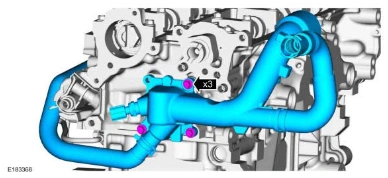

Engine — original illustration 1, reference 4930Original colors & callouts · Select to enlarge

106. Connect the coolant tube and the retainers.

Use the General Equipment: Hose Clamp Remover/Installer

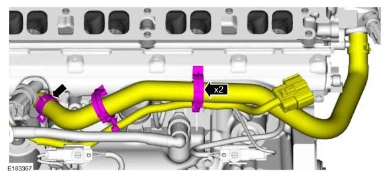

Engine — original illustration 2, reference 4930Original colors & callouts · Select to enlarge

NOTE: Installation of new seals is only required if damaged seals were removed during valve cover removal.

107. If removed, using the special tools, install the VCT oil control solenoid seals.

Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

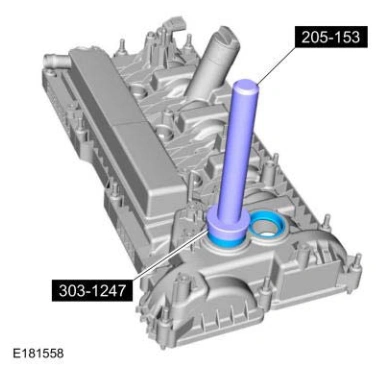

Engine — original illustration 3, reference 4930Original colors & callouts · Select to enlarge
