Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4932

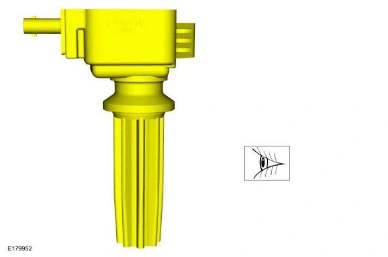

111. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.

Engine — original illustration 1, reference 4932Original colors & callouts · Select to enlarge

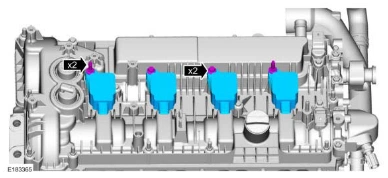

112. Install the ignition coil-on-plugs and the fasteners.

Torque

: 53 lb.in (6 Nm)

Engine — original illustration 2, reference 4932Original colors & callouts · Select to enlarge

113

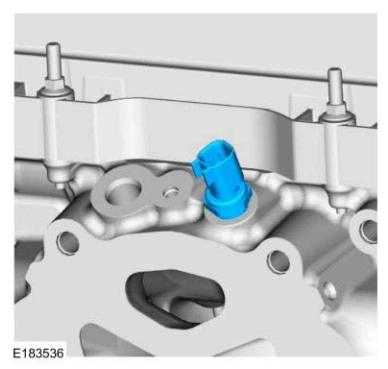

Install a new CHT sensor.

Torque

: 97 lb.in (11 Nm)

Engine — original illustration 3, reference 4932Original colors & callouts · Select to enlarge
