Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,934HTML edition
← Chapter contentsManual collection

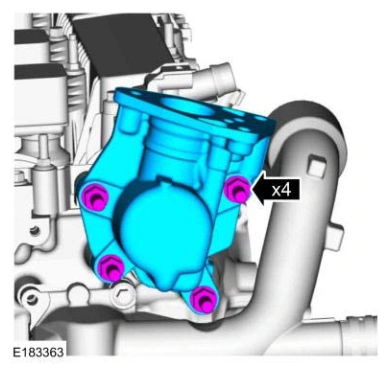

Stage 1: 133 lb.in (15 Nm)

Stage 2: 60°

Engine — original illustration 1, reference 4934Original colors & callouts · Select to enlarge

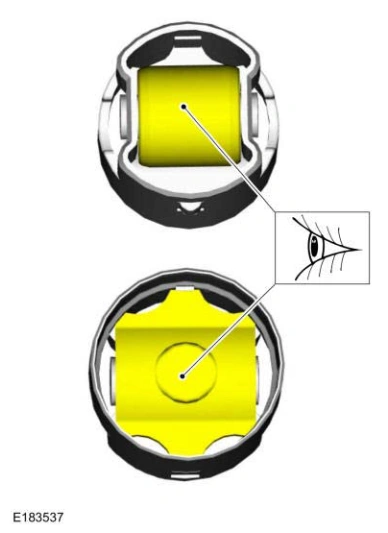

117. Inspect the high-pressure fuel pump tappet for flat spots or scoring, especially in the indicated areas. If any damage is found, inspect the high-pressure fuel pump and the high-pressure fuel pump tappet drive lobe. Install a new component as necessary.

Engine — original illustration 2, reference 4934Original colors & callouts · Select to enlarge

118. Lubricate the high-pressure fuel pump tappet with clean engine oil.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.)

Ford_Mustang_all_2015-2017.pdf · source reference 4934
