Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4937

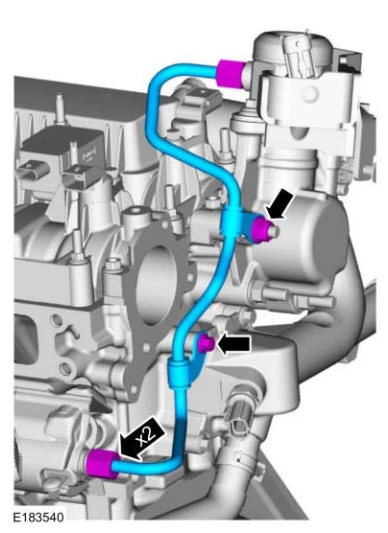

Engine — original illustration 1, reference 4937Original colors & callouts · Select to enlarge

123. Tighten the flare nuts in 2 stages.

Torque:

Stage 1: 133 lb.in (15 Nm)

Stage 2: 30°

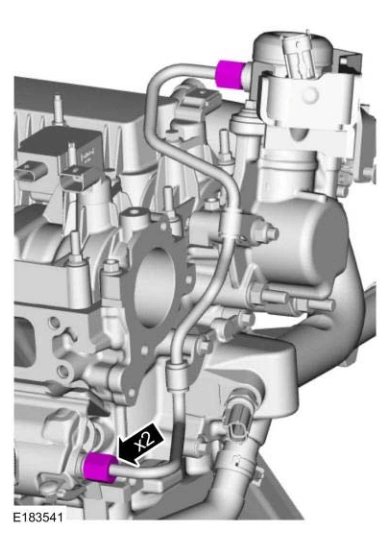

Engine — original illustration 2, reference 4937Original colors & callouts · Select to enlarge

124.
