Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4940

Engine — original illustration 1, reference 4940Original colors & callouts · Select to enlarge

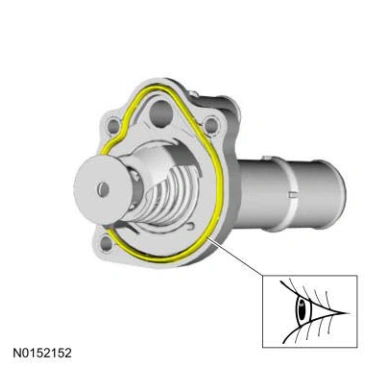

128. Inspect and replace the thermostat housing gasket, if damaged.

Engine — original illustration 2, reference 4940Original colors & callouts · Select to enlarge

129.

1. Install the thermostat housing the bolts.

Torque

: 89 lb.in (10 Nm)

2. Install the generator stud.

Torque

: 80 lb.in (9 Nm)
