Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,938HTML edition
← Chapter contentsManual collection

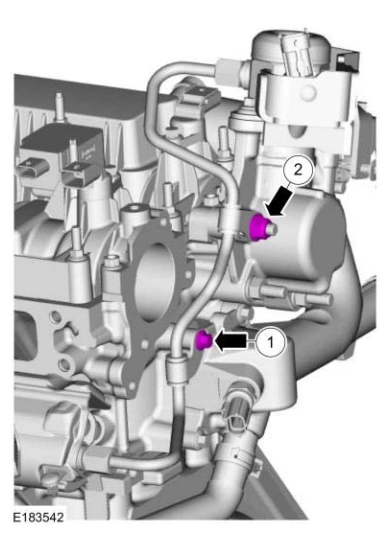

1. Tighten the bolt.

Torque

: 89 lb.in (10 Nm)

2. Tighten the nut.

Torque

: 150 lb.in (17 Nm)

Engine — original illustration 1, reference 4938Original colors & callouts · Select to enlarge

125. Inspect and replace the brake vacuum pump gasket, if damaged.

Ford_Mustang_all_2015-2017.pdf · source reference 4938
