Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4935

(WSS-M2C946-A)

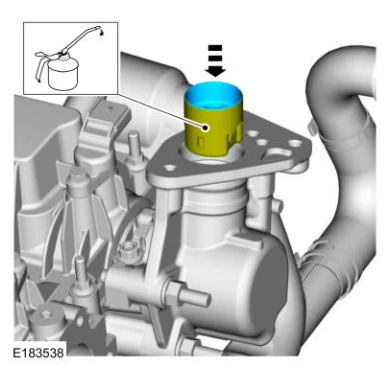

Install the high-pressure fuel pump tappet.

Engine — original illustration 1, reference 4935Original colors & callouts · Select to enlarge

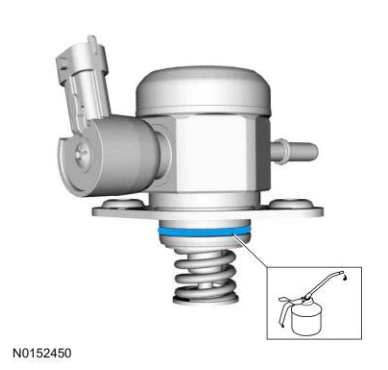

119. Install a new fuel injection pump O-ring seal.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Engine — original illustration 2, reference 4935Original colors & callouts · Select to enlarge

NOTE: Install new bolts.

120. Install the fuel injection pump and alternately tighten each bolt one complete revolution until seated in 2 stages.

Torque:

Stage 1: 44 lb.in (5 Nm)
