NOTE: The fuel injection cam lobe must be positioned at zero lift before installing the high-pressure fuel pump drive unit.

114. Rotate the crankshaft to position the camshaft at zero lift.

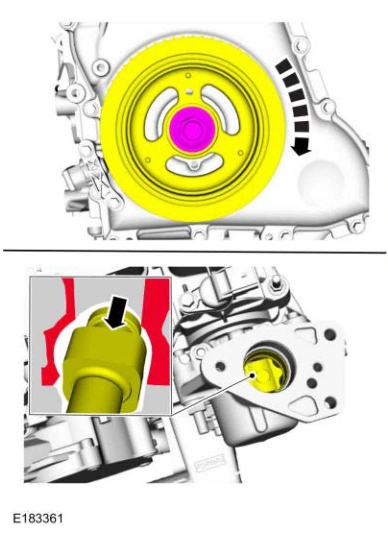

Engine — original illustration 1, reference 4933Original colors & callouts · Select to enlarge

115. Inspect and replace the high-pressure fuel pump drive unit gasket, if damaged.

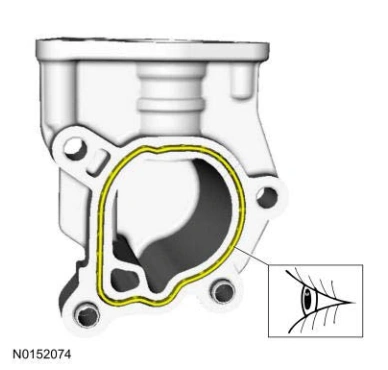

Engine — original illustration 2, reference 4933Original colors & callouts · Select to enlarge

116. Install the high-pressure fuel pump drive unit and the stud bolts and tighten in 2 stages.

Torque

Ford_Mustang_all_2015-2017.pdf · source reference 4933

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
