Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4931

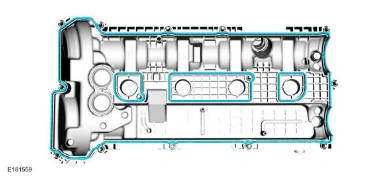

108. Install a new valve cover gasket.

Engine — original illustration 1, reference 4931Original colors & callouts · Select to enlarge

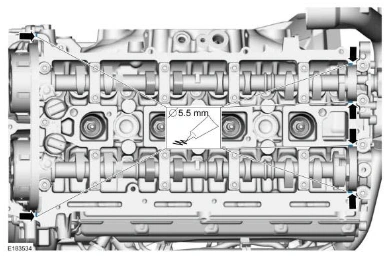

109. Apply a 5.5 mm bead of silicone sealant.

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Engine — original illustration 2, reference 4931Original colors & callouts · Select to enlarge

NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned.

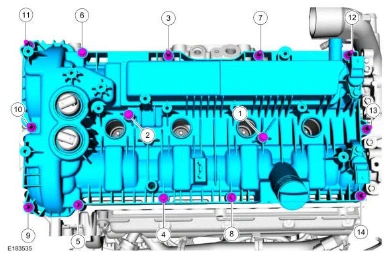

110. Install the valve cover and tighten the fasteners in the sequence shown in illustration.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 3, reference 4931Original colors & callouts · Select to enlarge
