Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4936

Stage 2: 55°

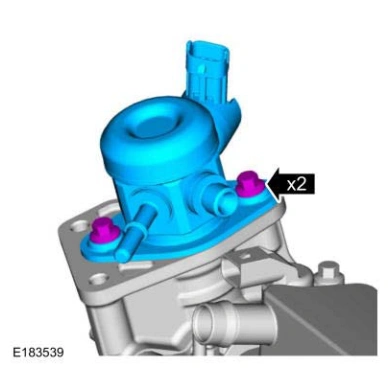

Engine — original illustration 1, reference 4936Original colors & callouts · Select to enlarge

121. Install the fuel injection pump bracket and the bolts.

Torque

: 150 lb.in (17 Nm)

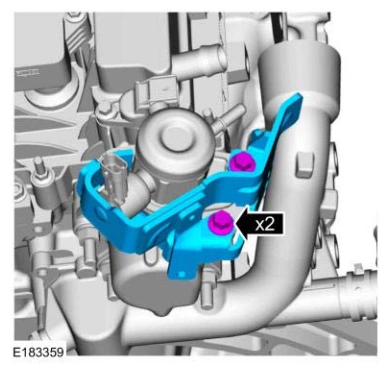

Engine — original illustration 2, reference 4936Original colors & callouts · Select to enlarge

NOTE: Install a new fuel tube.

122. Install the fuel tube, nut and the bolt finger-tight.

Install the flare nuts finger-tight.
