Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4939

Engine — original illustration 1, reference 4939Original colors & callouts · Select to enlarge

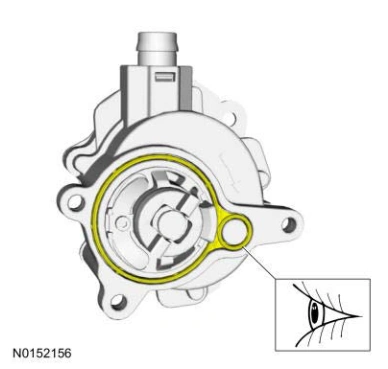

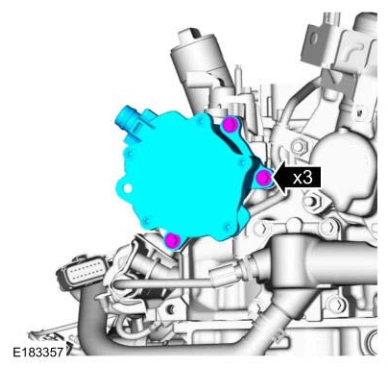

126. Install the brake vacuum pump and the bolts.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 2, reference 4939Original colors & callouts · Select to enlarge

127. Install the ground strap and the bolt.

Torque

: 18 lb.ft (25 Nm)
