Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4941

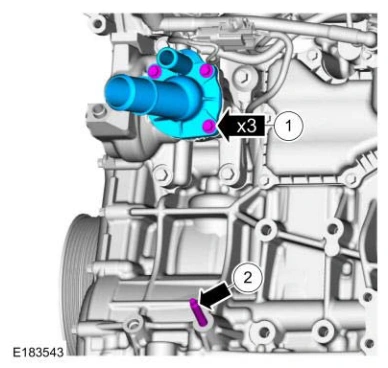

Engine — original illustration 1, reference 4941Original colors & callouts · Select to enlarge

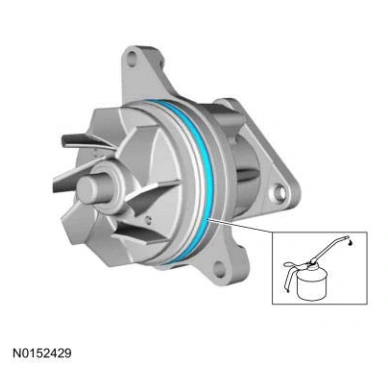

130. Install and lubricate the coolant pump O-ring seal with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

Engine — original illustration 2, reference 4941Original colors & callouts · Select to enlarge

131. Install the coolant pump and the bolts.

Torque

: 89 lb.in (10 Nm)
