Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4944

Engine — original illustration 1, reference 4944Original colors & callouts · Select to enlarge

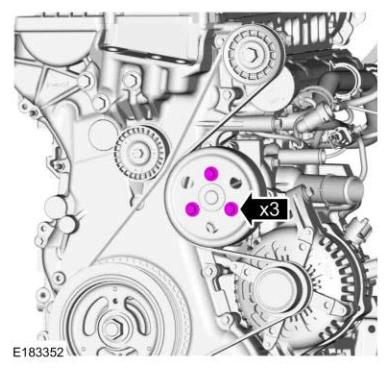

134. Tighten the coolant pump pulley bolts.

Torque

: 177 lb.in (20 Nm)

Engine — original illustration 2, reference 4944Original colors & callouts · Select to enlarge

135. Install the studs and the turbocharger gasket.

Torque

: 150 lb.in (17 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4944
