Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4946

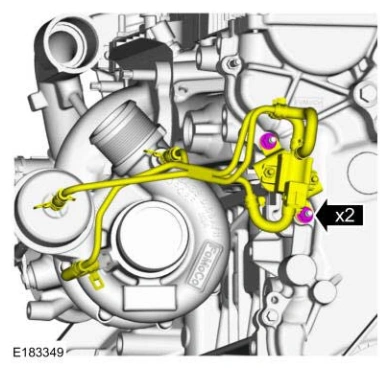

Engine — original illustration 1, reference 4946Original colors & callouts · Select to enlarge

138. Install the heat shield, nuts and the bolt finger-tight.

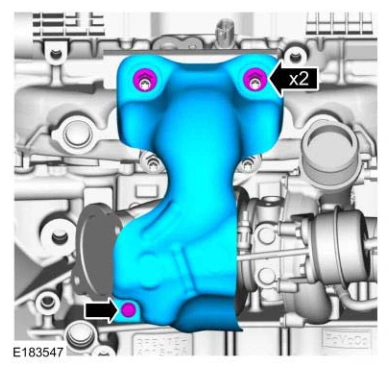

Engine — original illustration 2, reference 4946Original colors & callouts · Select to enlarge

139.

1. Tighten the nuts.

Torque

: 37 lb.ft (50 Nm)

2. Tighten the bolt.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4946
