Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,947HTML edition
← Chapter contentsManual collection

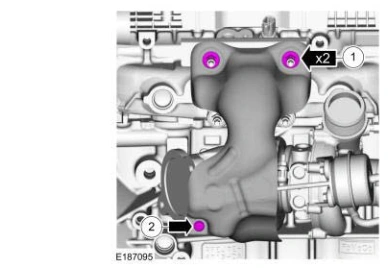

Engine — original illustration 1, reference 4947Original colors & callouts · Select to enlarge

NOTE: Do not reuse the turbocharger oil filter, a new part must be installed.

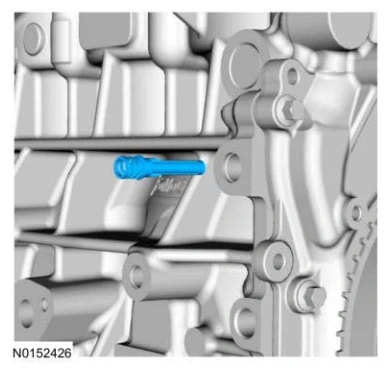

140. Install a new turbocharger oil supply filter.

Engine — original illustration 2, reference 4947Original colors & callouts · Select to enlarge

141. Install new sealing washers.

Lubricate and install the new turbocharger oil supply tube O-ring seal with clean engine oil.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
