Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4948

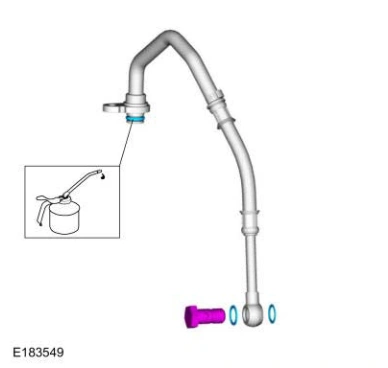

Engine — original illustration 1, reference 4948Original colors & callouts · Select to enlarge

NOTE: The oil feed hose must be fully seated prior to fastener rundown.

142.

1. Install the turbocharger oil supply tube and the bolt.

Torque

: 89 lb.in (10 Nm)

2. Tighten the bolt.

Torque

: 18 lb.ft (25 Nm)

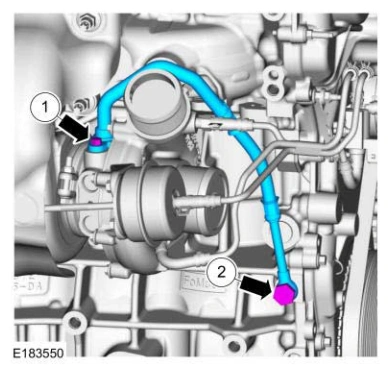

Engine — original illustration 2, reference 4948Original colors & callouts · Select to enlarge

143.

Ford_Mustang_all_2015-2017.pdf · source reference 4948
