147.

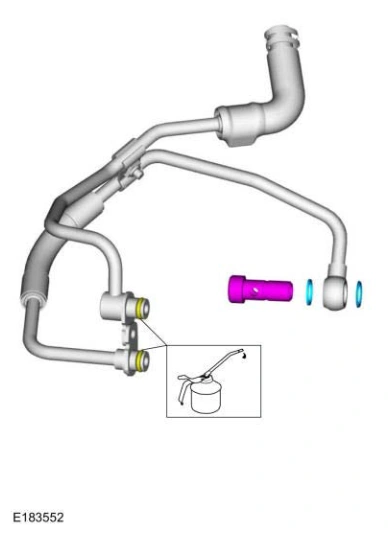

1. Fit the O-ring end of the turbocharger coolant tubes to the turbocharger. The lower coolant inlet tube goes into the turbocharger first. Install the bolt.
Torque
: 89 lb.in (10 Nm)
2. Install the bolt for the turbocharger coolant inlet tube.
Torque
: 27 lb.ft (37 Nm)
3. Connect the turbocharger coolant outlet tube to the coolant outlet.
Use the General Equipment: Hose Clamp Remover/Installer
