Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,954HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4954Original colors & callouts · Select to enlarge

153. Position the intake manifold and install the bolts.

Torque

: 177 lb.in (20 Nm)

Engine — original illustration 2, reference 4954Original colors & callouts · Select to enlarge

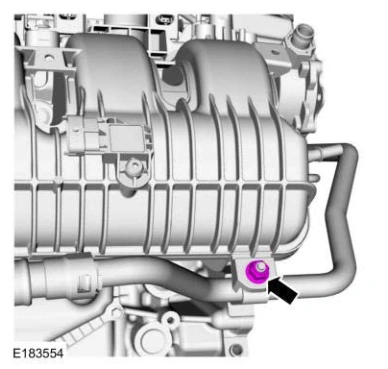

154. Install the nut on the coolant tube stud.

Torque

: 177 lb.in (20 Nm)

Engine — original illustration 3, reference 4954Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4954
