Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4956

: 97 lb.in (11 Nm)

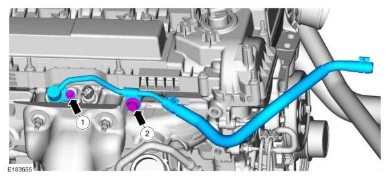

2. Install the coolant tube bolt.

Torque

: 22 lb.ft (30 Nm)

Engine — original illustration 1, reference 4956Original colors & callouts · Select to enlarge

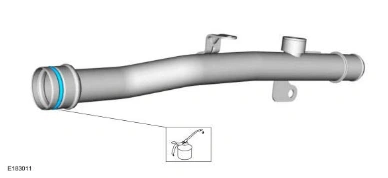

158. Install a new O-ring seal and lubricate with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

Engine — original illustration 2, reference 4956Original colors & callouts · Select to enlarge

159.

1. Install the coolant tube.

2. Install the coolant tube bolt.

Torque

: 89 lb.in (10 Nm)
