Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,959HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4959Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

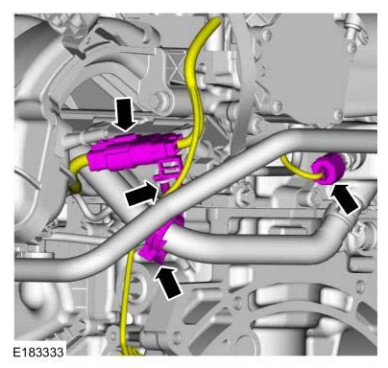

165. Attach the wiring harness retainers.

Engine — original illustration 2, reference 4959Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

166. Inspect and replace the oil filter adapter gasket, if damaged.
