Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4962

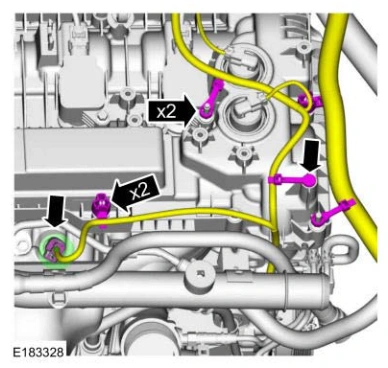

Engine — original illustration 1, reference 4962Original colors & callouts · Select to enlarge

171. Position the ground wire harness and install the bolt.

Torque

: 177 lb.in (20 Nm)

Attach the wiring harness retainer.

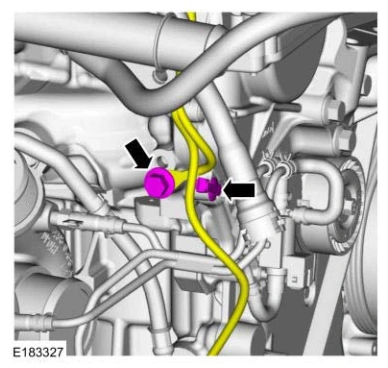

Engine — original illustration 2, reference 4962Original colors & callouts · Select to enlarge

172. Attach the wiring harness retainers.

Connect the CKP and vacuum valve electrical connectors.
