Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4960

Engine — original illustration 1, reference 4960Original colors & callouts · Select to enlarge

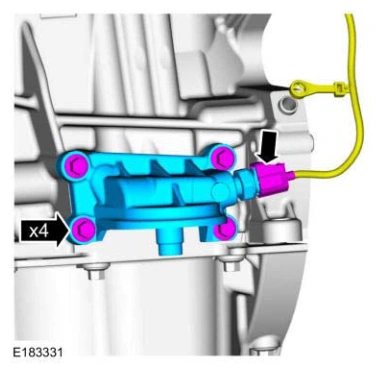

167. Install the oil filter adapter and the bolts.

Torque

: 18 lb.ft (25 Nm)

Connect the oil pressure switch electrical connector.

Engine — original illustration 2, reference 4960Original colors & callouts · Select to enlarge

168. Install the fuel supply tube and attach the retainer.

Connect the fuel supply tube quick release coupling to the high-pressure fuel pump. Refer to: QUICK RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).

Attach the fuel supply tube to the intake manifold retainer.
