Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,958HTML edition
← Chapter contentsManual collection

Connect the ignition coil-on-plugs and VCT oil control solenoid sensor electrical connectors.

Connect the CMP sensor and EVAP canister purge valve electrical connectors.

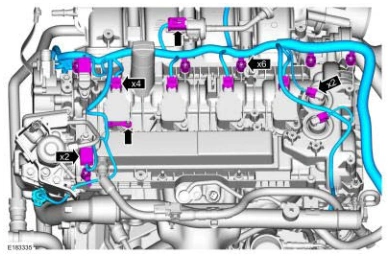

Engine — original illustration 1, reference 4958Original colors & callouts · Select to enlarge

163. Attach the wiring harness retainers.

Connect the throttle body and MAPT electrical connectors.

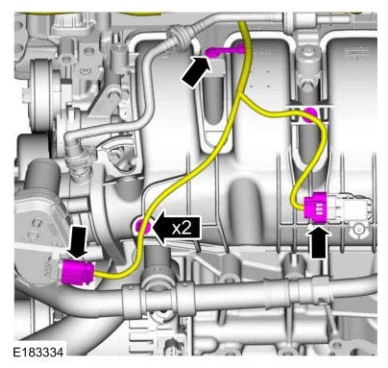

Engine — original illustration 2, reference 4958Original colors & callouts · Select to enlarge

164. Attach the wiring harness retainer.

Connect the ECT sensor electrical connector.

Connect and attach the fuel injector harness electrical connector.
