Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4957

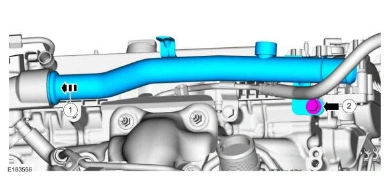

Engine — original illustration 1, reference 4957Original colors & callouts · Select to enlarge

160. Connect the crankcase vent tube to the valve cover.

Attach the crankcase vent tube retainer.

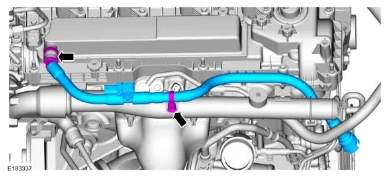

Engine — original illustration 2, reference 4957Original colors & callouts · Select to enlarge

161. Install the oil level indicator.

Install the EVAP canister purge valve and the bolt.

Torque

: 71 lb.in (8 Nm)

Connect the EVAP canister purge valve quick release coupling.

Engine — original illustration 3, reference 4957Original colors & callouts · Select to enlarge

162. Install the engine wiring harness and attach the wiring harness retainer.
