Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4955

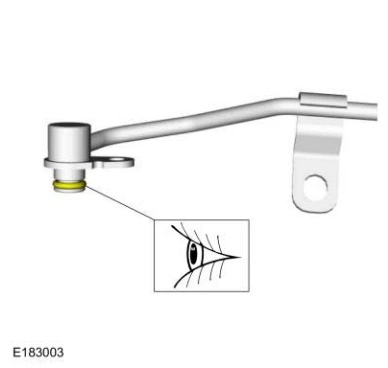

155. Inspect the coolant tube O-ring seal and replace if necessary.

Engine — original illustration 1, reference 4955Original colors & callouts · Select to enlarge

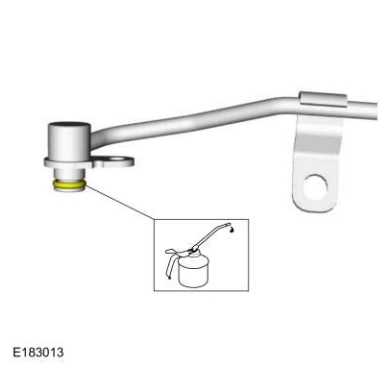

156. Lubricate the coolant tube O-ring seal with clean engine coolant.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

Engine — original illustration 2, reference 4955Original colors & callouts · Select to enlarge

157.

NOTE: The coolant tube must be fully seated prior to tighten the bolt.

1. Install the coolant tube and bolt.

Torque
