Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,952HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4952Original colors & callouts · Select to enlarge

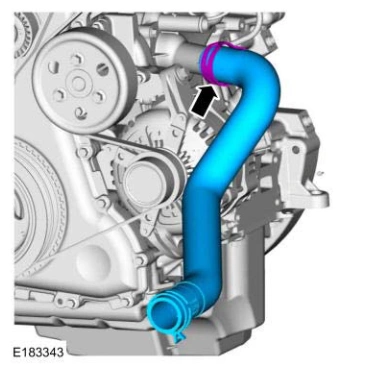

148. Connect the radiator hose to the thermostat housing.

Use the General Equipment: Hose Clamp Remover/Installer

Engine — original illustration 2, reference 4952Original colors & callouts · Select to enlarge

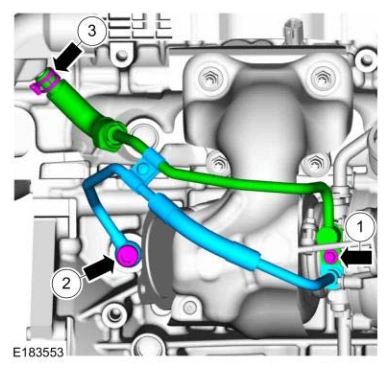

149. Install the coolant hose and the nut.

Torque

: 115 lb.in (13 Nm)

Connect the coolant hose to thermostat housing.

Use the General Equipment: Hose Clamp Remover/Installer
