Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,961HTML edition
← Chapter contentsManual collection

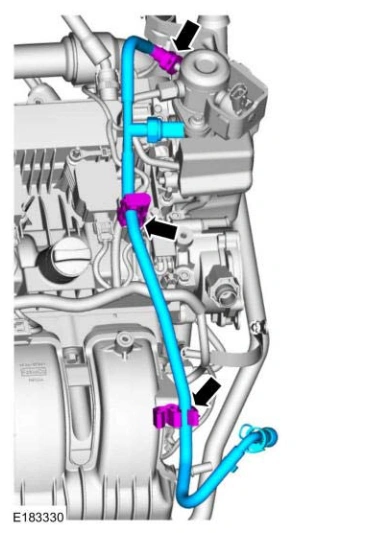

Engine — original illustration 1, reference 4961Original colors & callouts · Select to enlarge

169. Install the high-pressure fuel pump cover.

Attach the wiring harness retainers.

Connect the high-pressure fuel pump, fuel supply tube pressure switch and crankcase vent tube wiring harness electrical connectors.

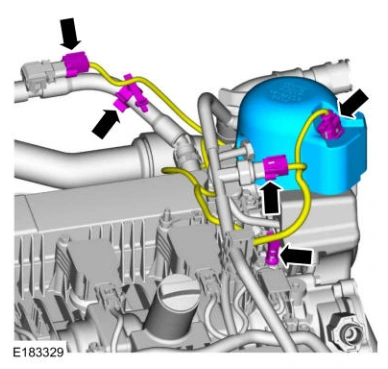

Engine — original illustration 2, reference 4961Original colors & callouts · Select to enlarge

170. Attach the wiring harness retainers.

Connect the CHT sensor electrical connector.

Ford_Mustang_all_2015-2017.pdf · source reference 4961
