Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4964

Engine — original illustration 1, reference 4964Original colors & callouts · Select to enlarge

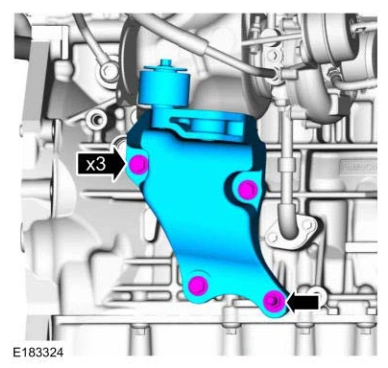

175. Install the A/C compressor mounting bracket and the bolts.

Torque

: 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 4964Original colors & callouts · Select to enlarge

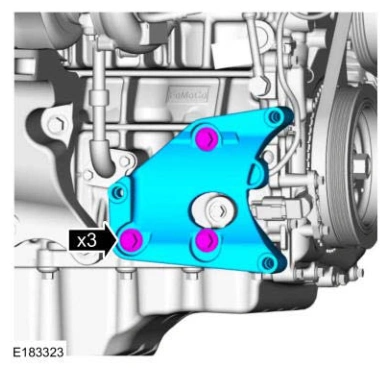

176. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
