Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,967HTML edition
← Chapter contentsManual collection

Use the General Equipment: Clutch Alignment Tool

Torque

: 26 lb.ft (35 Nm)

Engine — original illustration 1, reference 4967Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

181.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Install the flexplate and the new bolts finger-tight.

Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

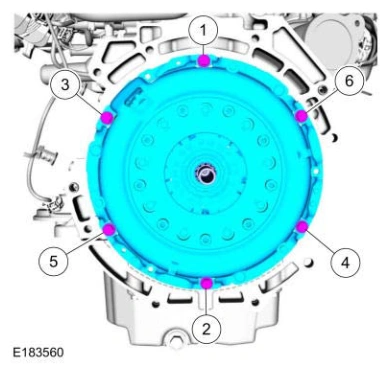

Tighten the bolts in sequence shown in illustration in 3 stages.

Torque:

Stage 1: 37 lb.ft (50 Nm)

Stage 2: 59 lb.ft (80 Nm)

Stage 3: 83 lb.ft (112 Nm)
