Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,969HTML edition
← Chapter contentsManual collection

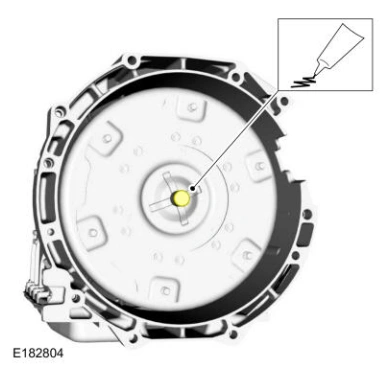

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Engine — original illustration 1, reference 4969Original colors & callouts · Select to enlarge

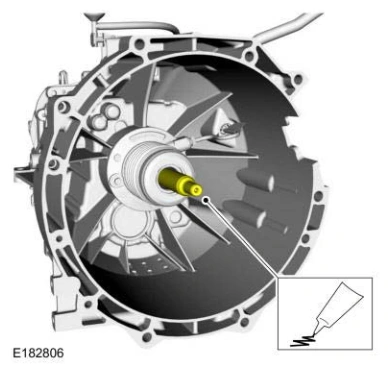

6-Speed Manual Transmission - MT82

2. Lubricate the input shaft with multi-purpose grease.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Engine — original illustration 2, reference 4969Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

3. Using the special tool, install the engine. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
