Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,972HTML edition
← Chapter contentsManual collection

8. Install the transmission bolts.

Torque

: 35 lb.ft (48 Nm)

Engine — original illustration 1, reference 4972Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

9. Install the transmission bolts.

Torque

: 35 lb.ft (48 Nm)

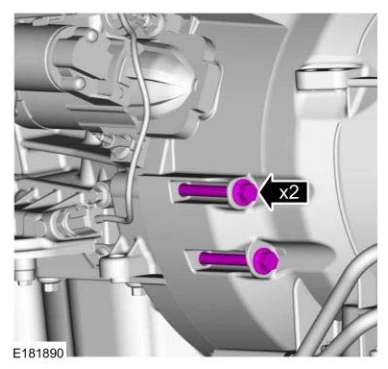

Engine — original illustration 2, reference 4972Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

10. Install the transmission bolts.
