Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,973HTML edition
← Chapter contentsManual collection

Torque

: 35 lb.ft (48 Nm)

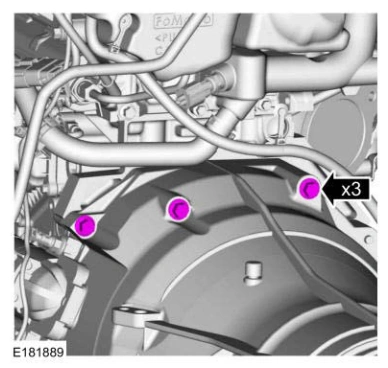

Engine — original illustration 1, reference 4973Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

11. Install the oil pan bolts.

Torque

: 35 lb.ft (48 Nm)

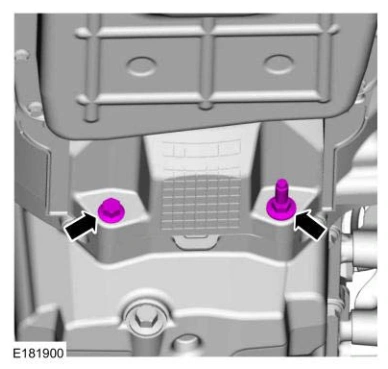

Engine — original illustration 2, reference 4973Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

12. Install the transmission cooling tube bracket and nut.
