Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4975

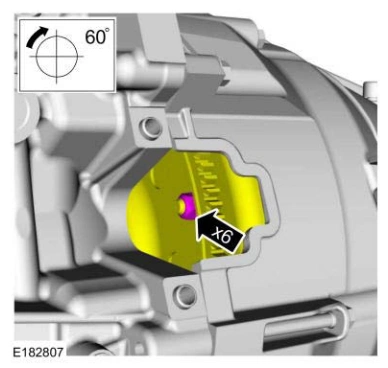

Engine — original illustration 1, reference 4975Original colors & callouts · Select to enlarge

15.

1. Push the transmission electrical connector in to connect.

2. Rotate the transmission electrical connector clockwise.

Attach the wiring harness retainers.

Engine — original illustration 2, reference 4975Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

16. Install a new gasket.

Ford_Mustang_all_2015-2017.pdf · source reference 4975
