Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4978

Engine — original illustration 1, reference 4978Original colors & callouts · Select to enlarge

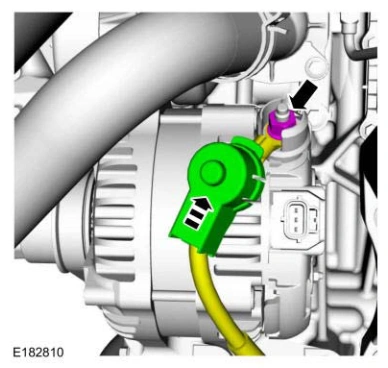

21. Install the B+ cable and the nut.

Torque

: 150 lb.in (17 Nm)

Position the protective cover.

Engine — original illustration 2, reference 4978Original colors & callouts · Select to enlarge

22. Connect the generator electrical connector.

Position the wire harness retainer and install the bolt.

Torque

: 89 lb.in (10 Nm)
