Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4981

Engine — original illustration 1, reference 4981Original colors & callouts · Select to enlarge

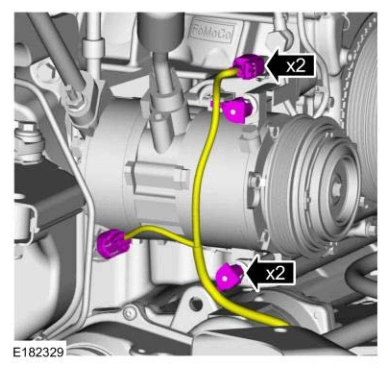

28. Connect the A/C compressor electrical connectors and the wire harness retainers.

Engine — original illustration 2, reference 4981Original colors & callouts · Select to enlarge

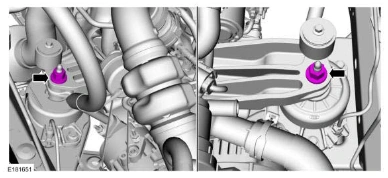

29. Install the RH and LH engine mount bracket nuts.

Torque

: 92 lb.ft (125 Nm)

Engine — original illustration 3, reference 4981Original colors & callouts · Select to enlarge

30. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
