Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,983HTML edition
← Chapter contentsManual collection

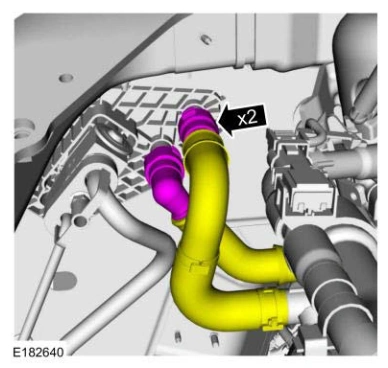

33. Connect the coolant hoses to the heater core.

Engine — original illustration 1, reference 4983Original colors & callouts · Select to enlarge

34. Connect the vacuum tube to the rear of the intake manifold.

Engine — original illustration 2, reference 4983Original colors & callouts · Select to enlarge

35. Attach the vacuum tube to the intake manifold retainer.

Connect the vacuum tube quick release coupling to the EVAP canister purge valve.

Ford_Mustang_all_2015-2017.pdf · source reference 4983

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
