Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4985

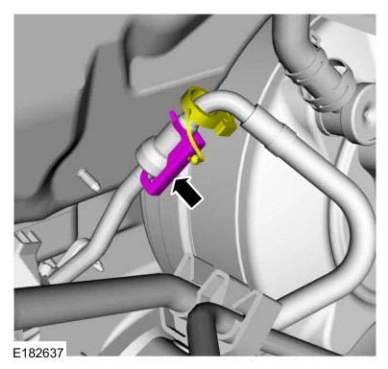

Engine — original illustration 1, reference 4985Original colors & callouts · Select to enlarge

38.

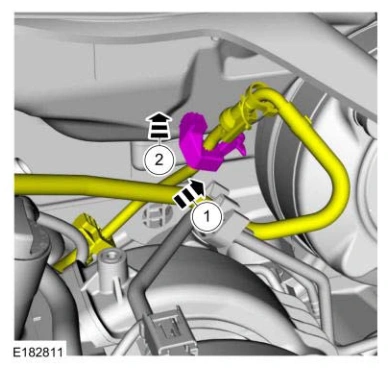

1. Slide the retainer up the fuel supply tube.

2. Attach the fuel supply tube retainer to the cowl.

Engine — original illustration 2, reference 4985Original colors & callouts · Select to enlarge

39. Install the engine ground strap and nut to the cowl.

Torque

: 80 lb.in (9 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4985
