Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4987

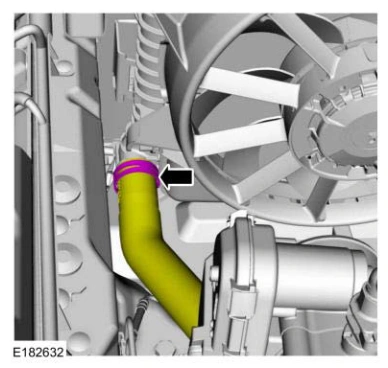

42. Install the lower radiator hose to the radiator.

Use the General Equipment: Hose Clamp Remover/Installer

Engine — original illustration 1, reference 4987Original colors & callouts · Select to enlarge

43. Position the CAC outlet tube and tighten the clamp.

Torque

: 44 lb.in (5 Nm)

Engine — original illustration 2, reference 4987Original colors & callouts · Select to enlarge

44. Position the CAC inlet tube and tighten the clamp.

Torque

: 44 lb.in (5 Nm)
