Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4989

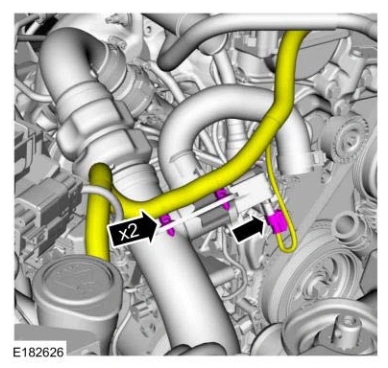

47. Connect the CAC valve electrical connector and the wire harness retainers.

Engine — original illustration 1, reference 4989Original colors & callouts · Select to enlarge

48. Install the following items:

Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

Refer to: AIR CLEANER - 2.3L EcoBoost (231kW/314PS).

Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

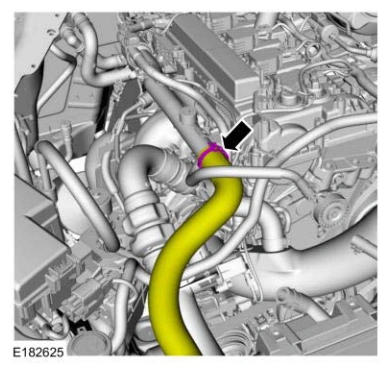

49. Install the upper radiator hose to the coolant tube.

Use the General Equipment: Hose Clamp Remover/Installer

Engine — original illustration 2, reference 4989Original colors & callouts · Select to enlarge

50. Install the degas bottle. Refer to: DEGAS BOTTLE .
