Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4991

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

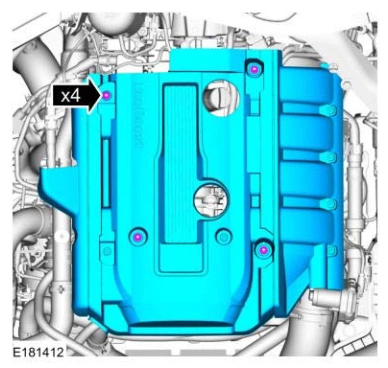

55. Install the engine appearance cover and the nuts.

Torque

: 80 lb.in (9 Nm)

Engine — original illustration 1, reference 4991Original colors & callouts · Select to enlarge

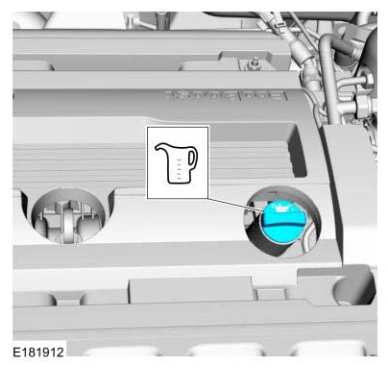

56. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)

Engine — original illustration 2, reference 4991Original colors & callouts · Select to enlarge

57. Fill the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
