Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4990

NOTE: Use the index-mark for location to aid in hood installation.

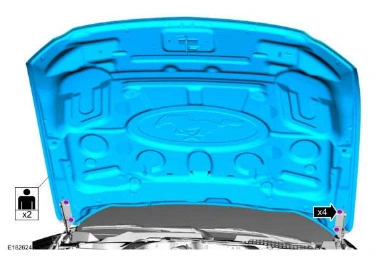

51. Install the hood and the 4 nuts.

Torque

: 17 lb.ft (23 Nm)

Engine — original illustration 1, reference 4990Original colors & callouts · Select to enlarge

52.

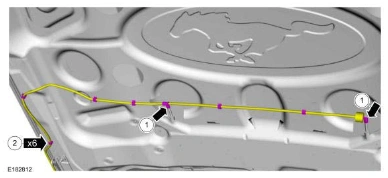

1. Connect the windshield washer hose couplings. Refer to: Washer Hose Coupling .

2. Attach the windshield washer hose retainers.

Engine — original illustration 2, reference 4990Original colors & callouts · Select to enlarge

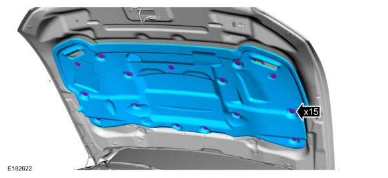

53. Install the hood insulation and the pin-type retainers.

Engine — original illustration 3, reference 4990Original colors & callouts · Select to enlarge

54.
