Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,992HTML edition
← Chapter contentsManual collection

58.

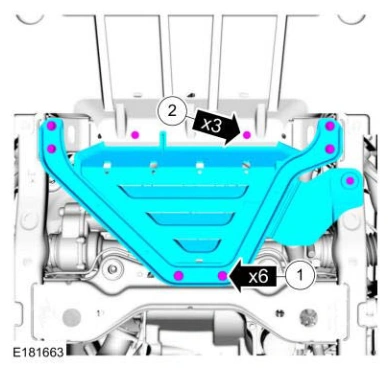

1. Install the underbody shield and the bolts.

Torque

: 46 lb.ft (63 Nm)

2. Install the underbody shield screws.

Engine — original illustration 1, reference 4992Original colors & callouts · Select to enlarge

59. Start and check the exhaust system for leaks.

60. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.

Ford_Mustang_all_2015-2017.pdf · source reference 4992
