Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4984

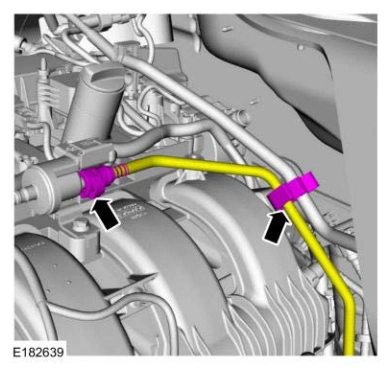

Engine — original illustration 1, reference 4984Original colors & callouts · Select to enlarge

36. Connect the fuel supply tube. Refer to: SPRING LOCK COUPLINGS - 2.3L EcoBoost (231kW/314PS).

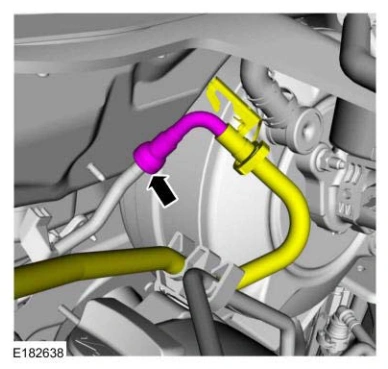

Engine — original illustration 2, reference 4984Original colors & callouts · Select to enlarge

37. Install the fuel supply tube spring lock coupling retainer.
