Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4980

Engine — original illustration 1, reference 4980Original colors & callouts · Select to enlarge

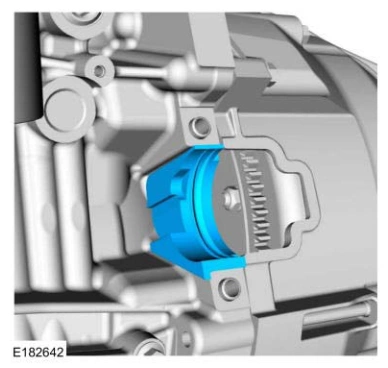

25. Install the starter motor insulator.

Engine — original illustration 2, reference 4980Original colors & callouts · Select to enlarge

26. Install the starter motor. Refer to: STARTER MOTOR .

27. Position the A/C compressor and install the bolts.

Torque

: 18 lb.ft (25 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4980
