Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4979

Engine — original illustration 1, reference 4979Original colors & callouts · Select to enlarge

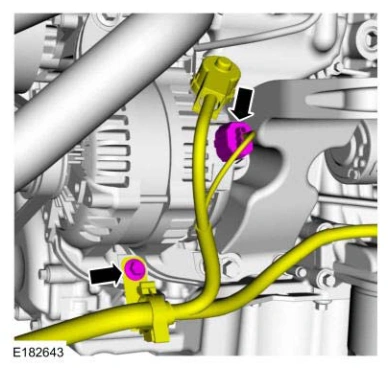

23. Install the ground wire and nut to the engine mount bracket stud bolt.

Torque

: 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 4979Original colors & callouts · Select to enlarge

24. Attach the wire harness retainer to the engine mount bracket stud bolt.

Ford_Mustang_all_2015-2017.pdf · source reference 4979
