Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,976HTML edition
← Chapter contentsManual collection

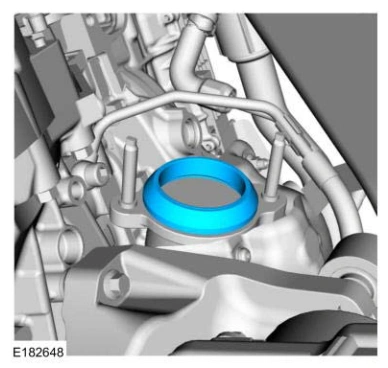

Engine — original illustration 1, reference 4976Original colors & callouts · Select to enlarge

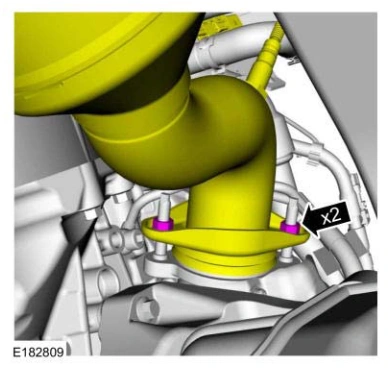

17. Position the catalytic converter and install the new nuts.

Torque

: 30 lb.ft (40 Nm)

Engine — original illustration 2, reference 4976Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

18. Install the bolts for the catalytic converter bracket.

Torque

: 18 lb.ft (25 Nm)
