Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,970HTML edition
← Chapter contentsManual collection

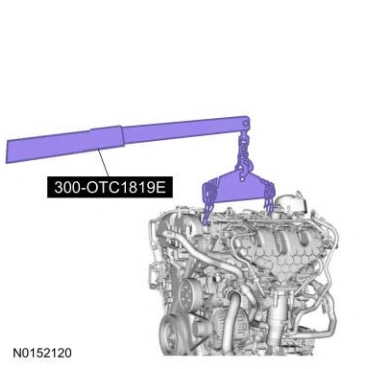

Engine — original illustration 1, reference 4970Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

4. Align the torque converter stud marked during removal with the flexplate.

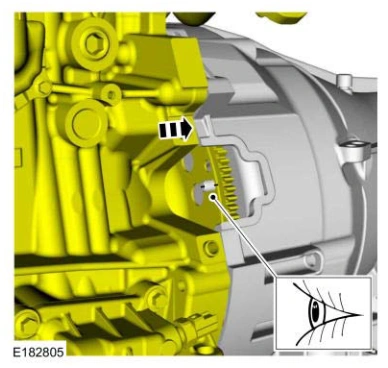

Engine — original illustration 2, reference 4970Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

NOTE: Automatic transmission shown in illustration, manual transmission similar.

5. Install the oil pan bolt.

Torque

: 35 lb.ft (48 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4970
